Android 自定义View 密码框 例子
- 暴露您view中所有影响可见外观的属性或者行为。
- 通过XML添加和设置样式
- 通过元素的属性来控制其外观和行为,支持和重要事件交流的事件监听器
详细步骤见:Android 自定义View步骤 http://www.linuxidc.com/Linux/2015-08/120991.htm

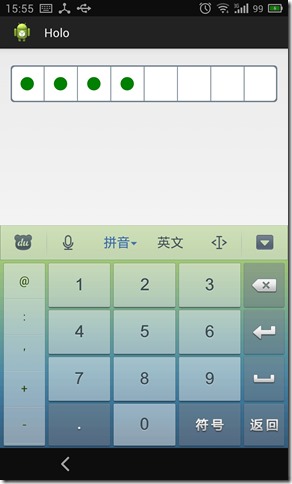

样子
支持的样式
可以通过XML定义影响外边和行为的属性如下
边框圆角值,边框颜色,分割线颜色,边框宽度,密码长度,密码大小,密码颜色
同时支持原来EditText功能,可以获得数据值,数字键盘设置等
绘制逻辑的主要代码
protected void onDraw(Canvas canvas) {
int width = getWidth();
int height = getHeight();
// 外边框
RectF rect = new RectF(0, 0, width, height);
borderPaint.setColor(borderColor);
canvas.drawRoundRect(rect, borderRadius, borderRadius, borderPaint);
// 内容区
RectF rectIn = new RectF(rect.left + defaultContMargin, rect.top + defaultContMargin,
rect.right – defaultContMargin, rect.bottom – defaultContMargin);
borderPaint.setColor(Color.WHITE);
canvas.drawRoundRect(rectIn, borderRadius, borderRadius, borderPaint);
// 分割线
borderPaint.setColor(borderColor);
borderPaint.setStrokeWidth(defaultSplitLineWidth);
for (int i = 1; i < passwordLength; i++) { float x = width * i / passwordLength; canvas.drawLine(x, 0, x, height, borderPaint); } // 密码 float cx, cy = height/ 2; float half = width / passwordLength / 2; for(int i = 0; i < textLength; i++) { cx = width * i / passwordLength + half; canvas.drawCircle(cx, cy, passwordWidth, passwordPaint); } } 完整代码下载
